ELECTRO FUSION MACHINE
Suitable
for connection PE pipe and fittings with coupling which are used for gas
and water supply
EF 20-315

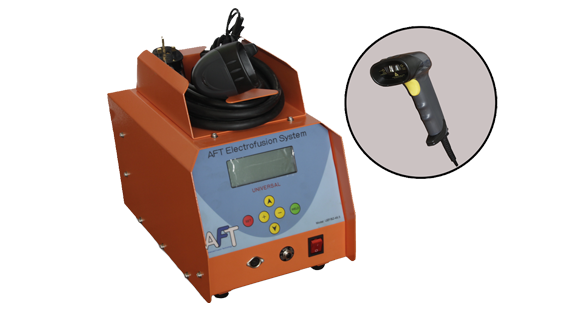

Electro Fusion Machine EF 20-315
Product
Detail
Application and Features:
- High-level
MCU is used as control core, with abundant parameter setting, measuring and
perfect protective function.
- High
brightness liquid crystal display , Chinese and English language operation,
man-manchine interactive interface.
- Wide power
supply and voltage input, suitable for on-the-spot electric network level.
- High
precision control to electric energy and time, insuring welding quality.
- Swift output
response time when power supply breaks,high stability.
- With 10
phases programmable welding function, suitable for welding requirement of
various fittings.
- Flexible
welding parameter input mode; manual input through keyboard of bar code scanning
input.
Technical Parameters:
|
Model |
EF 20-315 |
|
Input
Voltage |
48V±10%
220V±20% or 380V±20% |
|
Input
frequency |
40~65Hz |
|
Output
voltage |
8~48V |
|
Output
power |
3.5KW/12KW |
|
Control
mode |
Constant
volt/ Constant current/ Constant power |
|
Recording
number of data |
500 |
|
Time
control precision |
≤±0.01% |
|
Temperature
measuring precision |
±0.5℃ |
|
Data
output port |
RS232 |
|
Packing
size(mm) |
330*200*270 |
|
|
|

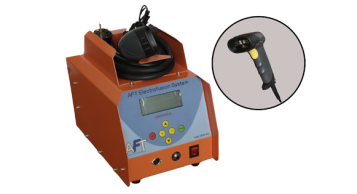

EF 20-500
