WORKSHOP FITTING FUSION MACHINE

Suitable for PE, PP, PVDF fitting in workshop by selection different special clamp, can be used for making pipe fittings to elbow, tee, cross and Y shape (45o and 60o)

SHG 800/450

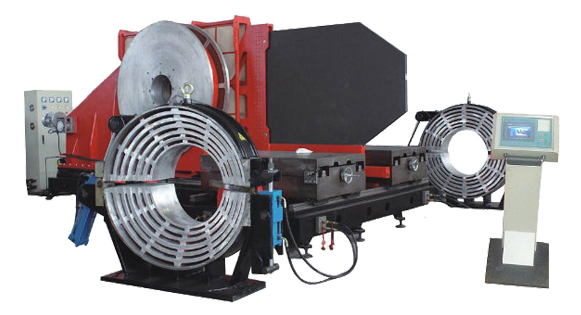

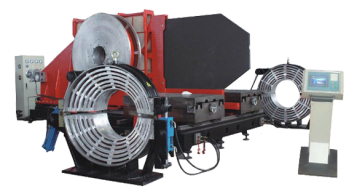

Workshop Fitting Fusion Machine SHG 800/450

Application and features ：

•         Applied to fabricate PE PP PVDF elbow, tee, cross and Y shape (45° and 60 °)
•          fittings in workshop. Also used to lengthen the injection moulded fitting and make an integrated fitting.
•          Integrated structure. Nothing remains but to choose the different special clamps while fabricating different fittings
•          Removable PTFE coated heating plate with separate temperature controlling system
•          Electric planing tool with safety limit switch enable to start it only when it is locked in the operation position
•          Low starting pressure and high reliable seal structure
•          Separate two-channel timer records times in soaking and cooling phases.
•          Digital pressure meter enables to control pressure accurately
•          Linear guide ways are equipped with eating plate, planing tool and dragging plate

Optional parts：

•          Special clamps for welding flange stub
•          Special clamps for short fitting

Parameters：
