GEOMEMBRANE WELDER
Suitable
for welding PP/PE plates, vessels and chemical tanks. make the plastic
material connection and fabrication

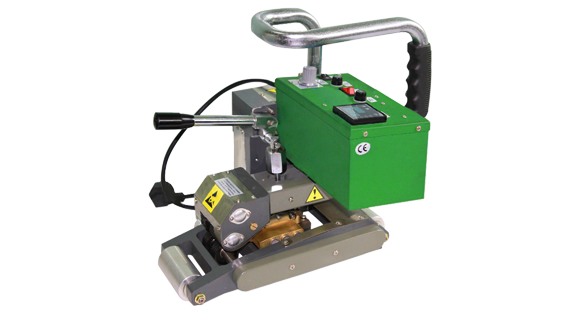

LST 800
Product Detail
Name : Geomembrane Welder LST 800
LST800 hot wedge welding machine is
small, light, high welding efficient. It is available for welding HDPE, LDPE
,EVA ,PVC, ECB, PP and other hot melt materials.
Technical
Parameters：
|
Model |
LST 800 |
|
Voltage |
220V±5% |
|
Power |
800W |
|
Welding
speed |
0.5-5m/min |
|
Heating
temperature |
0-450°C |
|
Thickness
of material |
0.2mm1.5mm |
|
Overlap
width |
10cm |
|
Welding
width |
12.5mm×2,
interior cavity 12mm |
|
Seam
strength |
≥85% base
material (tensile resistant in shear direction) |
|
WeightWeight |
5kgs |
|
Insulation
class |
class II |
|
Usage |
for welding
PE PVC and other hot melt materials |

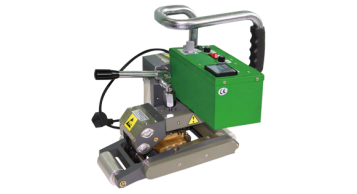

LST 800D
Produck detail
Name : Geomembrane
Welder LST 800D
LST800D hot
wedge welding machine is small, light, high welding efficient. It is available
for welding HDPE, LDPE ,EVA ,PVC, ECB, PP and other hot melt materials.
Applications:
- Railway/
highway subway tunnel waterproof construction;
- Water
conservancy projects, man-made landscape;
- Riverbank,
aquaculture farm;
- Refuse
landfill, sewage treatment;
- Chemical,mining
industry;
- Construction
waterproofing projects.
Technical Parameters：
|
Model |
LST 800D |
|
Voltage |
220V±5% |
|
Frequency |
50/60Hz |
|
Power |
800W |
|
Welding
speed |
0.5-5m/min |
|
Heating
temperature |
0-450°C |
|
Thickness
of material |
0.2mm1.5mm |
|
Overlap
width |
10cm |
|
Welding
width |
12.5mm×2,
interior cavity 12mm |
|
Seam
strength |
≥85% base
material (tensile resistant in shear direction) |
|
WeightWeight |
5kgs |
|
Insulation
class |
class II |
|
Usage |
for
welding PE PVC and other hot melt materials |
LST 600B
Hand Extruder Welder LST 600B
LST 900
Product Detail
Name : Geomembrane Welder LST 900
LST 900 Hot wedge sealer is powerful
with high welding speed and good welding quality.It is available for welding
over 1.0mm HDPE, LDPE ,EVA ,PVC, ECB, PP and other hot melt materials.
Applications:
- Railway/
highway subway tunnel waterproof construction;
- Water
conservancy projects, man-made landscape;
- Riverbank,
aquaculture farm;
- Refuse
landfill, sewage treatment;
- Chemical,mining
industry;
- Construction
waterproofing projects.
Technical Parameters：
|
Model |
LST 900 |
|
Voltage |
220V±5% |
|
Power |
1800W |
|
Welding speed |
0.5-5m/min |
|
Heating temperature |
0-450°C |
|
Thickness of material |
1.0mm 3mm |
|
Overlap width |
12cm |
|
Welding width |
15mm×2, interior cavity 15mm |
|
Seam strength |
≥85% base material (tensile
resistant in shear direction) |
|
WeightWeight |
13kgs |
|
Insulation class |
class II |
|
Usage |
for welding PE PVC and other hot melt materials |
LST 900D
Geomembrane Welder LST 900D
Subtaile for Wedding PP/PE plates,
vessels and chemikal tanks, make the plastic material and fabrication.
